Indoor RGB Full Color SMD LED Display

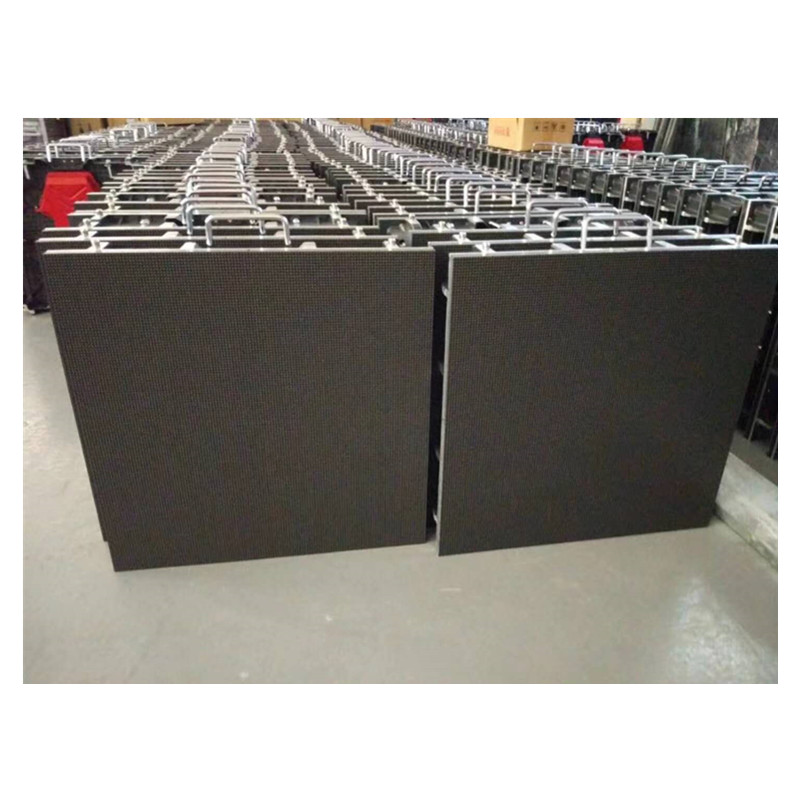

P4.8 Indoor RGB Full Color SMD LED Display

P4.8SMD3528IndoorfullColorLEDScreenSpecificationPixelpitch4.8mmPixelConfiguration1R1G1BLEDcomponentSMD3528Sizeofmodule288mmx288mmResolutionofmodule60x60Sizeofcabinet576mmx576mmx65mmResolutionofcabinet120x120MaterialofCabinetDie-castingAluminumWeightofCabinet10.50KG

  • P4.8 Indoor RGB Full Color SMD LED Display
  • P4.8 Indoor RGB Full Color SMD LED Display
P4.8 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch4.8mm
Pixel Configuration1R1G1B
LED componentSMD3528
Size of module288mm x 288mm
Resolution of module60x60
Size of cabinet576mm x 576mm x 65mm
Resolution of cabinet120x120
Material of CabinetDie-casting Aluminum
Weight of Cabinet10.50KGS
Brightness>1500cd/m2
Density43402dots/m2
Best viewing angle140 /140
Pixel Configuration1R1G1B
Best viewing distance3-50M
Maximum power consumption1200W/sq.m
Average power consumption640W/sq.m
Driving method1/15 scan
Control methodSynchronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V/110V±10%
Working temperature-20oC~+50oC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1920Hz
IP gradeIP31
Life Span100,000 hours
Data transafer methodRJ45
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
